FGD Pump

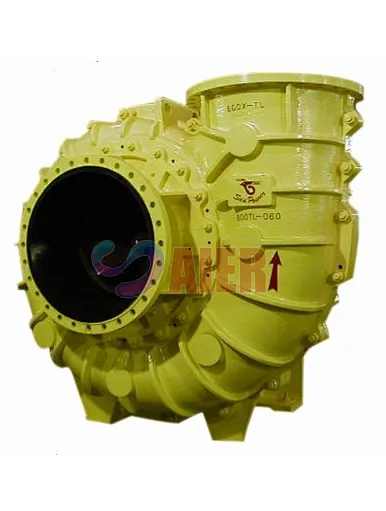

TL, TLR FGD Pump
Series of TL, TLR FGD pump is a single stage single suction horizontal centrifugal pump. It is mainly used as the circulation pump for absorbent tower in FGD applications. It has such features: wide range flowing capacity, high efficiency, high saving power. This series of pump is matched by tight structure X bracket which can save much space. Special materials were developed for TL, TLR FGD Pump.
Quantity
Contact Now
add to cart

Product Description

SPEFICATIONS:

Size: 350-1000mm
Capacity: 1500-14000m3/h
Head: 10-33m
Max.particles: 180mm
Temperature Range: ≤80°C
Materials: Hyperchrome, Natural Rubber, etc

AIER® TL, TLR FGD Pump

 General

Series of TL FGD pump is a single stage single suction horizontal centrifugal pump. It is mainly used as the circulation pump for absorbent tower in FGD applications. It has such features: wide range flowing capacity, high efficiency, high saving power. This series of pump is matched by tight structure X bracket which can save much space. Meanwhile our company develops many kinds of material targeted on the pumps for FGD.

 Technology Features

The pump wet parts are designed by advanced CFD Flowing Simulating Analysis Techniques to ensure design reliable and its working effective.

It can change the impeller’s position in pump casing by adjusting the bearing assembly to keep the pump working high efficiently all the time.

This kind of pump adopts back pull-out structure, keeping it easy construction and easy maintenance. It doesn’t need disassemble inlet & outlet pipeline.

Two sets of taper roller bearing is fixed in the end of the pump, the column roller bearing is equipped at driving end. The bearing is lubricated by oil. All these can improve the bearing working condition and greatly enhance it life.

Integrating mechanical seal which is specialized in FGD technology to ensure its operation is adopted.

 Material Selection

AIER has developed a new kind of specialized anti-wear and anti-corrosive material which possess the duplex stainless steel’s anti-corrosive property and the high chrome white iron’s anti-abrasive property in FGD process.

In the rubber pump casing, impeller, suction cover/cover plate are all made of specialized anti-wear and anti-corrosive material; the material of front liner, back liner and back liner insert are natural rubber with light weight and having excellent anti-corrosive property and low cost.

In metal pump casing, impeller, volute liner, suction plate and back plate are all made of specialized anti-wear and anti-corrosive material, the suction cover are made of ductile iron with rubber.
