Gravel Sand Pump
WS, WSG Gravel Sand Pump
WS/WSG gravel pumps are designed for continuously handling the most difficult higher abrasive slurry which contain too big solids to be pumped by a common pump. They are suitable for delivering slurry in mining, explosive sludge in metal smelting, dredging in dredger and course of rivers, and other fields. Type WSG pump are of high head ones.
Quantity
Contact Now
add to cart

Product Description

SPECIFICATIONS:

Size (discharge): 4"to 18"
Capacity: 36-4320m3/hr
Head: 5m-80 m
Handling solids: 0-260mm
Concentration: 0%-70%
Material: High chrome alloy, Cast iron, Stainless steel etc

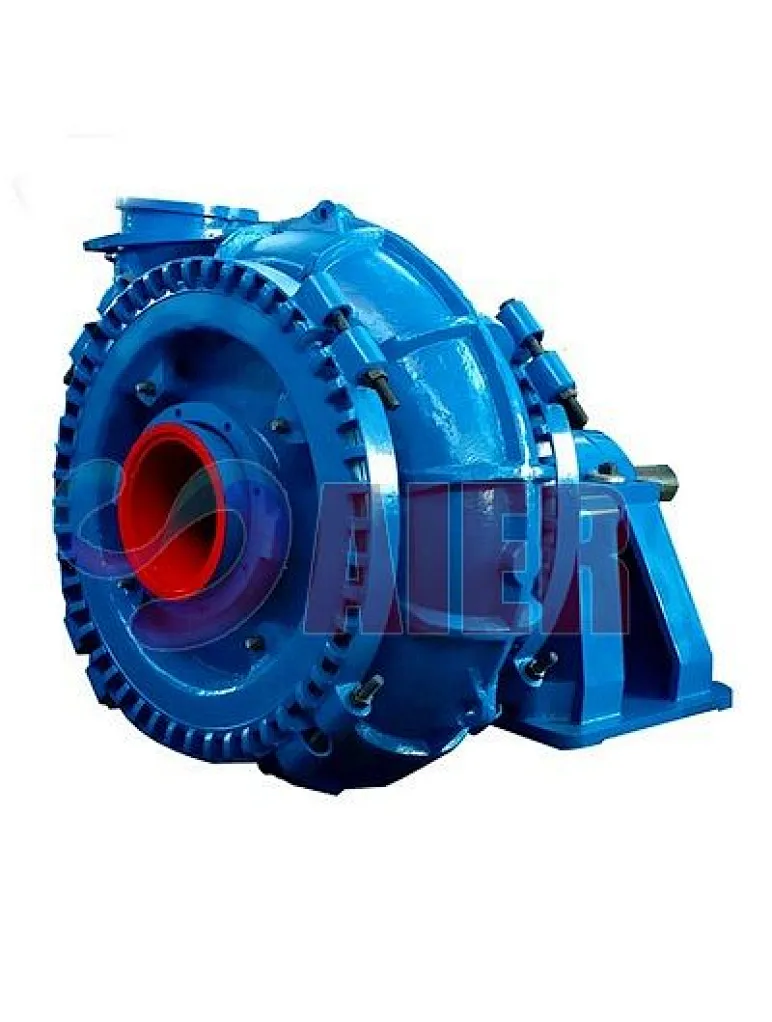

AIER® WS, WSG Gravel Sand Pump

    Pump Introduction

    WS/WSG gravel pumps are designed for continuously handling the most difficult higher abrasive slurry which contain too big solids to be pumped by a common pump. They are suitable for delivering slurry in mining, explosive sludge in metal smelting, dredging in dredger and course of rivers, and other fields. Type WSG pump are of high head ones.

    Typical Applications

    Tailings, sugar beet, dredging, slag granulation, cyclone feed, slag granulation, suction hopper dredging, barge loading, mill discharge, sand reclamation, booster pumping, sand waste, material transfer, etc.

    Features

    Construction of this pump is of single casing connected by means of clamp bans and wide wet-passage. The wet-parts are made of Ni-hard and high chromium abrasion-resistance alloys. The discharged direction of pump can be oriented in any direction of 360°.

    The type of pump possess the advantage of easy installing and operation, good performance of NPSH and abrasion-resistance.

    Types of driver: V belt driver, gearbox driver, elastic coupling driver, fluid coupling driver, frequency conversion driver, silicon controlled rectifier speed regulation etc.

    Pump Notation

    200WS-F

    200: Outline Diameter: mm

    WS: Pump Type: Gravel Pump

    F: Frame type
