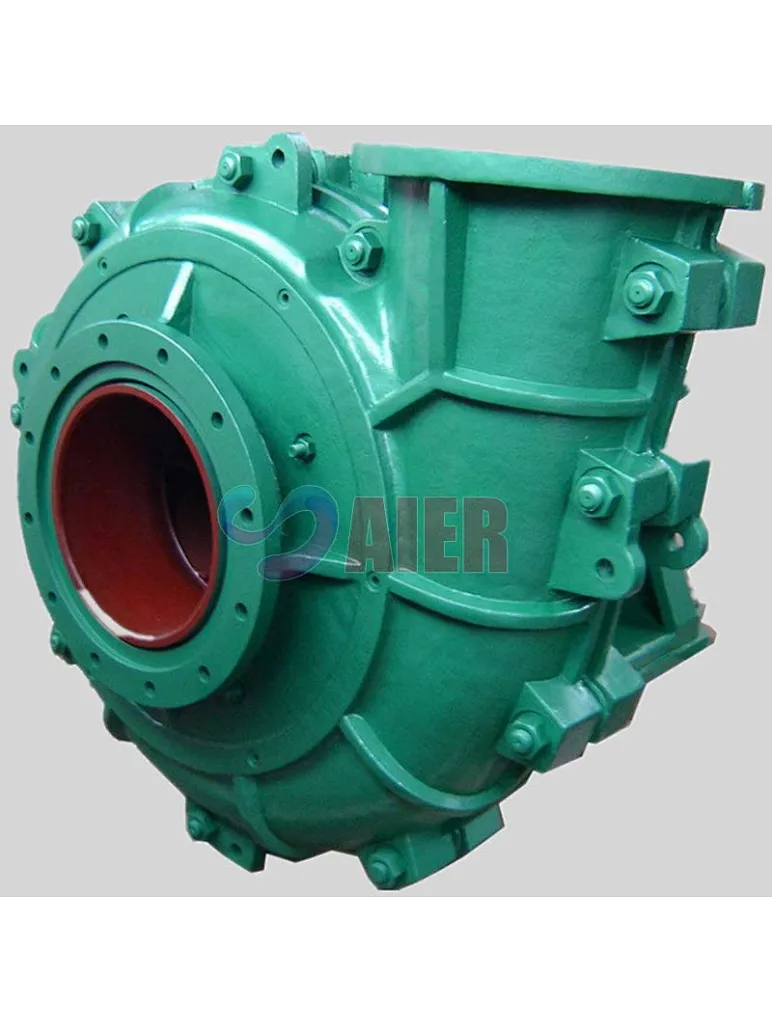

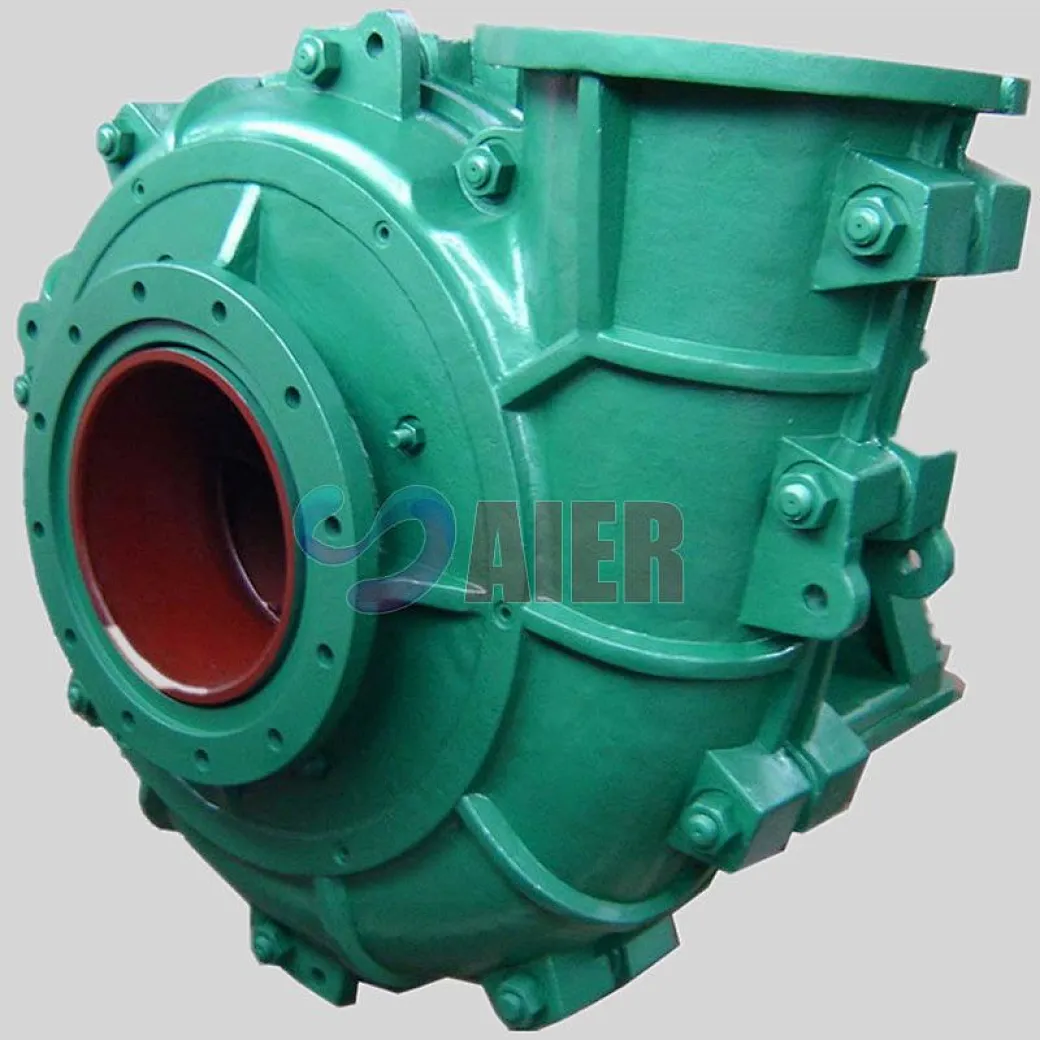

WL Light-duty Slurry Pump
WL Series pumps are cantilevered, horizontal centrifugal slurry pumps. They are suitable for delivering low density slurries for metallurgical, mining, coal and building material departments. The shaft seal adopts both gland seal and centrifugal seal.
Quantity
Contact Now
add to cart

Product Description

SPECIFICATIONS:
Size: 20-650mm
Capacity: 2.34-9108m3/h
Head: 4-60m
Pressure: Max.250psi
Materials: Hyper chrome alloy, Rubber, Polyurethane etc.

AIER® WL Light Dudy Slurry Pump

WL Series pumps are cantilevered, horizontal centrifugal slurry pumps. They are suitable for delivering low density slurries for metallurgical, mining, coal and building material departments. The shaft seal adopts both gland seal and centrifugal seal.

WL series pumps operate in high speed with small volumes to save floor area. The frame plates have changeable, wear resistant metal liners and the impellers are made of wear resistant metal.

Typical Applications

SAG mill discharge, ball mill discharge, Rod mil discharge, Ni acid slurry, coarse sand, coarse tailings, phosphate matrix, minerals concentrate, heavy media, sugar beet, bottom/fly ash, oil sands, mineral sands, fine tailings, slag granulation, phosphoric acid, coal, flotation, process chemical, pulp and paper, FGD, cyclone feed, waste water, plant water supply, etc.

Features

The frame plate are made of wear resistant hard metal liners.

The impellers are made of hard metal.

The shaft seals can be packing seal, centrifugal seal or mechanical seal.

The discharge branch can be positioned at intervals of 45 degrees by request and oriented to any eight positions to suit installations and applications. There are many drive modes for option, such as V-belt, flexible coupling, gearbox, hydraulic coupler variable frequency, silicon controlled speed, etc. Among them, the flexible shaft coupling drive and V-belt feature of low cost and easy installation.

Pump Notation
200WL-S:

200: Outlet diameter: mm

WL: Light duty slurry pump

S: Frame plate type
Construction Design


WL Slurry Pump

Casing

Split casing halves of cast or ductile iron contain the wear liners and provide high operation pressure capabilities.

Interchangeable hard metal and moulded elastomer liners

Impeller

The impeller may be either moulded elastomer or hard metal. Deep side sealing vanes relieve seal pressure and minimize recirculation.

Cast-in impeller threads are better suited for slurries.

Mating faces in hard metal liners are tapered to allow positive alignment during assembly and allow components to be easily removed for replacement.

Pump Part Material

Part NameMaterialSpecificationHRCApplicationOEM Code
Liners & ImpellerMetalAB27: 23%-30% chrome white iron≥56Used for higher wear condition with pH between 5 and 12A05
AB15: 14%-18% chrome white iron≥59Used for higher wear conditionA07
AB29: 27%-29% chrome white iron43Used for lower pH condition especially for FGD. It also can be used for low-sour condition and desulfuration installation with pH no less than 4A49
AB33: 33%-37% chrome white ironIt can transport oxygenated slurry with pH not be less than 1 such as phospor-plaster, nitric acid, vitriol, phosphate etc.A33
RubberR08
R26
R33
R55
Expeller & expeller ringMetalB27: 23%-30% chrome white iron≥56Used for higher wear condition with pH between 5 and 12A05
Grey ironG01
Stuffing BoxMetalAB27: 23%-30% chrome white iron≥56Used for higher wear condition with pH between 5 and 12A05
Grey ironG01
Frame/Cover plate, bearing house & baseMetalGrey ironG01
Ductile ironD21
ShaftMetalCarbon steelE05
Shaft sleeve, lantern ring/resctrictor, neck ring, gland boltStainless steel4Cr13C21
304 SSC22
316 SSC23
Joint rings & sealsRubberButylS21
EPDM rubberS01
NitrileS10
HypalonS31
NeopreneS44/S42
VitonS50

Transmission Module Design

Transmission Module Design

Large diameter pump shaft, cylindrical

Construction of heavy load, metric bearing using oil lubrication or grease lubrication; opened in serial, the construction features of small volume and high reliability.

WL Slurry Pump
WL Slurry Pump

Shaft Bearing Assembly

A large diameter shaft with a short overhang minimizes deflection and vibration.

Heavy duty roller bearings are housed in a removable bearing cartridge.

Pump Base

Fasten the pump in the base with a minimum number of bolts and adjust impeller in a convenient position below the bearing housing.

Water proof cover prevents leakage water from flying.

Protection cover prevents leakage water from the bearing bracket.

Shaft Seal Module Design

WL Slurry Pump

1. Packing Box

2. Front Lantern Ring

3. Packing

4. Packing Gland

5. Shaft Sleeve

1. Release Gland

2. Expeller

3. Packing

4. Packing Gasket

5. Lantern Ring

6. Packing Gland

7. Oil Cup

WL Slurry Pump
WL Slurry Pump

GRJ Mechanical Seal

GRG type is used for liquid which is not allowed diluted.

HRJ Mechanical Seal

HRJ type is used for liquid allowed dilute.

High hardness ceramic and ally are adopted for material of friction parts. It possesses high abrasive resistance & shake proof to guarantee that sealing effect can be satisfied by customer in various conditions.

Performance Curve

WL Slurry Pump

Installation Dimensions

WL Slurry Pump

TypeABCDEFGn-dHJKLM
20WL-A46115924128625210284-Φ1857201458990
50WL-B62414325429524248384-Φ148028197191136
75WL-C81317535640632311484-Φ1912042254253163
100WL-D95021343249238364644-Φ2216365330280187
150WL-E121825754662254448764-Φ2922080457376237
200WL-E133425754662254448764-Φ2922080457413306
250WL-E134825754662254448764-Φ2922080457411324
250WL-R140649056068050590704-Φ2821685350322324
300WL-S172064076092070780904-Φ35280120450415300
350WL-S177664076092070780904-Φ35280120450425340
400WL-ST18406209001150807801254-Φ48280120650480375
450WL-ST18756209001150807801254-Φ48280120650500400
550WL-TU2400860120014609510501504-Φ79350150900625500

WL Slurry PumpWL Slurry Pump

TypePump Head SizeSuction FlangeDischarge Flange
NSQRPO.D.I.D.C-C
Bet.
Holes
HoleO.D.I.D.C-C
Bet.
Holes
Hole
20WL-A8614412811425834-Φ1410220734-Φ14
50WL-B114155163184751464-Φ19165501274-Φ19
75WL-C1461022042291001914-Φ19203751654-Φ19
100WL-D1901182623051502604-Φ222291001914-Φ22
150WL-E2481553243682003248-Φ193051502608-Φ19
200WL-E2921994014452503948-Φ223822003378-Φ22
250WL-E4382574766034705523054958-Φ324832544258-Φ32
250WL-R4382574766034705523054958-Φ324832544258-Φ32
300WL-S47526559963457056035050012-Φ2653030047012-Φ26
350WL-S53029564369162064040058012-Φ2659035053012-Φ26
400WL-ST60034374780974072045065012-Φ3368540061512-Φ33
450WL-ST66037581487280077050070012-Φ3374045067012-Φ33
550WL-TU8604531055114297597565088012-Φ3990055080012-Φ39
