Product Description

SPECIFICATIONS:

Pump size: DN 40 to 500 mm

Flow rate: up to 5500m3/h

Discharge head: up to 100m

Fluid temperature: -40 to +120°C

Materials: Cast Iron, Ductile Iron, Cast Steel, Stainless Steel, Duplex Stainless Steel, High Chrome, etc.

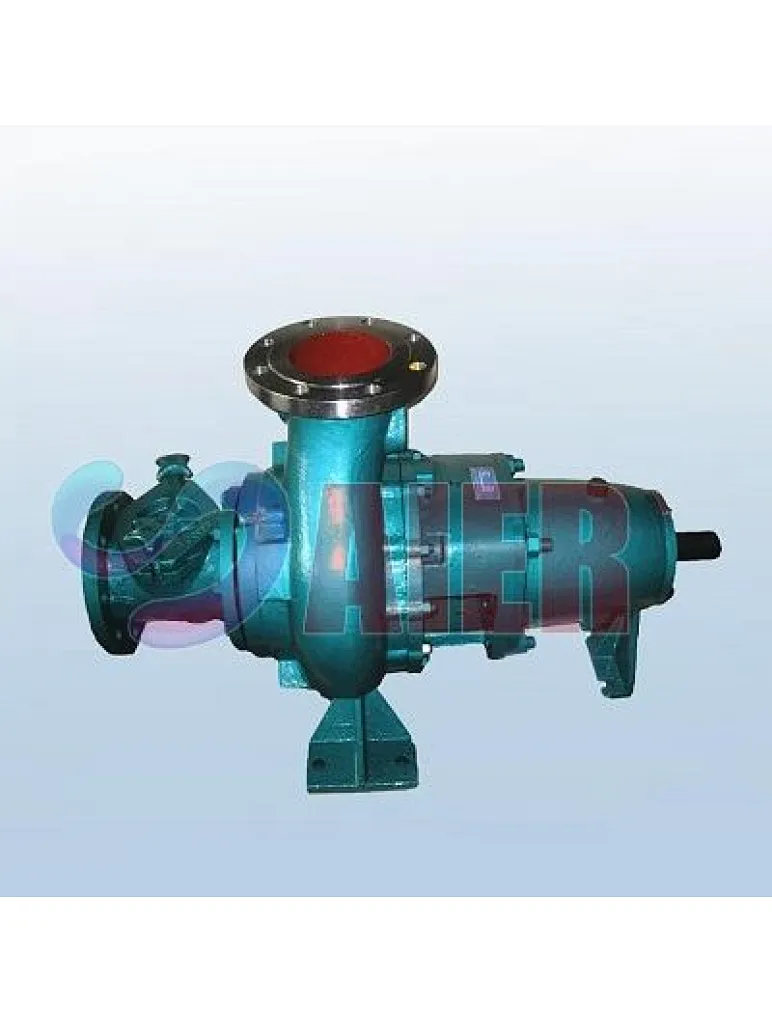

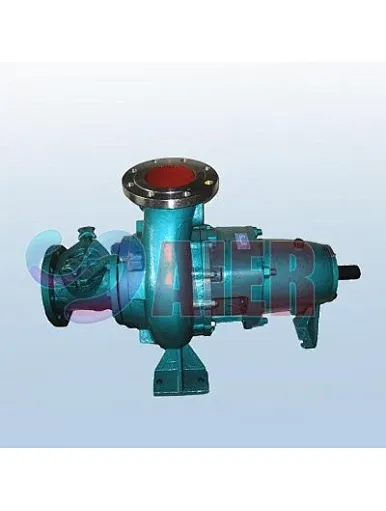

AIER^® KWP Non-clogging Sewage Pump

General
Series of KWP non-clogging centrifugal pump is a new type high-efficiency, energy-saving non-clogging pump with technology introduced from KSB Co.

KWP non-clogging pump is of no clog sewage pump with specially used for city water supply, sewage and effluent treatment, chemicals, iron & steel industries and paper, sugar & canned food industries.

 Features

KWP sewage pump is characterized by high-efficiency, non clogging and back pull-out design which can allow the rotor to be removed from the pump casing without disturbing the piping or dismantling the casing. This not only  simplifies maintenance but also allows fast inter change of the impellers and wear plate of suction side, thereby permitting the pump to be rapidly modified to suit different operating conditions.

 Impeller types of KWP no clog sewage pump

"K"impeller: Closed non-cloge impeller

For clear water, sewage, fluids containing solids and sludge which do not liberate gas.

"N"impeller: Closed multi-vane impeller

For clear water, fluids containing slight suspension such as treated sewage, screen water, pulp water, suger juices, etc.

"O"impeller: Open impeller

Same applications as"N"impeller, but also including fluids containing air.

"F"impeller: Free flow impeller

For fluids containing coarse solids liable to bunch or plait(such as long fiber admixtures, sticky particles, etc.) and fluids containing air.

Applications of KWP no clog sewage pump

They can be applied to city water supply, waterworks, breweries, chemical industry, construction, mining, metallurgy, paper making, sugar producing and canned food industry, particularly applicable to sewage treatment works; meanwhile, some of the impellers are suitable for conveying the object which contains solids or long-fiber non-abrasion solid-liquid mixtures.

They are widely used in the lossless transportations of fruits, potatoes, sugar beet, fish, grains and other food.

Type KWP pump normally is suitable for delivering the neutal media (PH value: about 6-8). For the application of corrosive fluid and other special requirements, corrosion resistant, abrasion resistant materials are available.
