Product Description

SPECIFICATIONS:

Size (discharge): 40mm to 300mm
Capacity: 7.28-1300 m3/h
Head: 3m-45 m
Handing solids: 0-79mm
Concentration: 0%-70%
Materials:High chrome alloy, Rubber,

Polyurethane, Ceramic, Stainless steel etc.

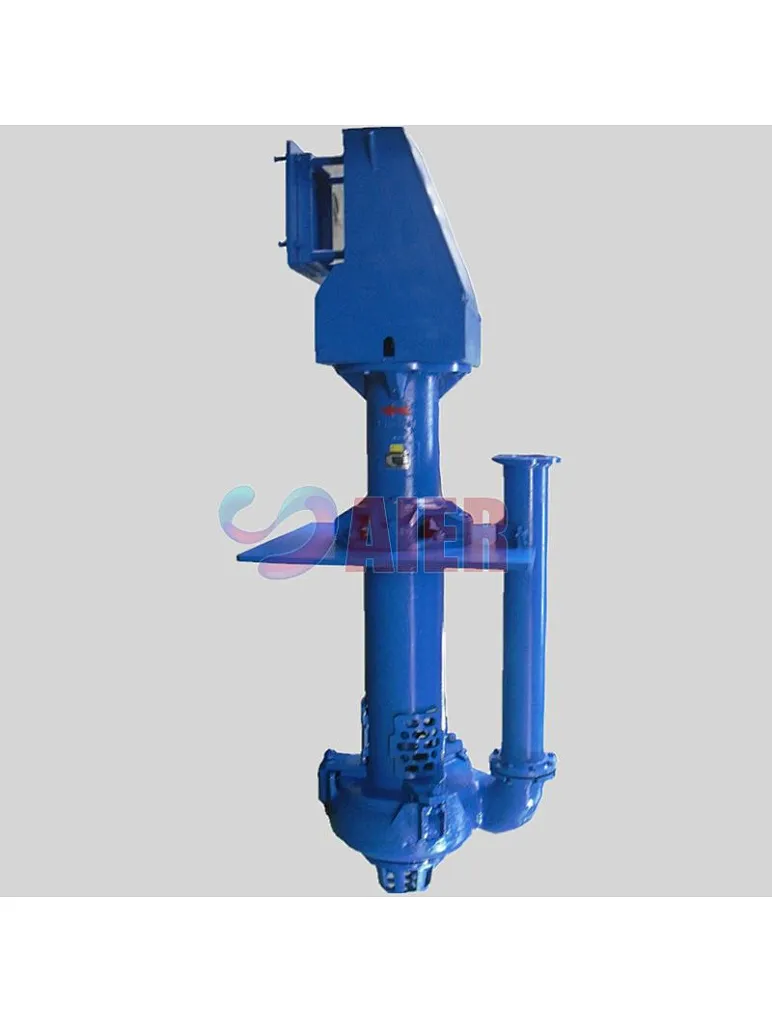

AIER® WY Sump Pump

WY & WYJ sump pump are vertical centrifugal slurry pump, submerged for transfer abrasive, coarse particles and high density slurry. When working, it needs no seal water or any kind of seal. It can work well as well when suction volume is not enough.

Typical Applications

Sump drainage or washdown

Floor drainage

Mill sump

Carbon transfer

Monitoring

Magnetite mixing

Features

WY type pump casing is made of abrasion resistant metal, impeller material can be abrasion resistant metal or rubber.

The submerged parts of WYJ are all lined with rubber, for transfer corrosive slurry.

Pump Notation

150WY-S:

150: Outlet diameter: mm

WY: Pump type: High chrome alloy lined sump pump

S: Frame plate type

150WYJ-S:

150: Outlet diameter: mm

WYJ: Pump type: Rubber lined sump pump

S: Frame plate type

Construction Design

WY High Chrome Alloy Lined
